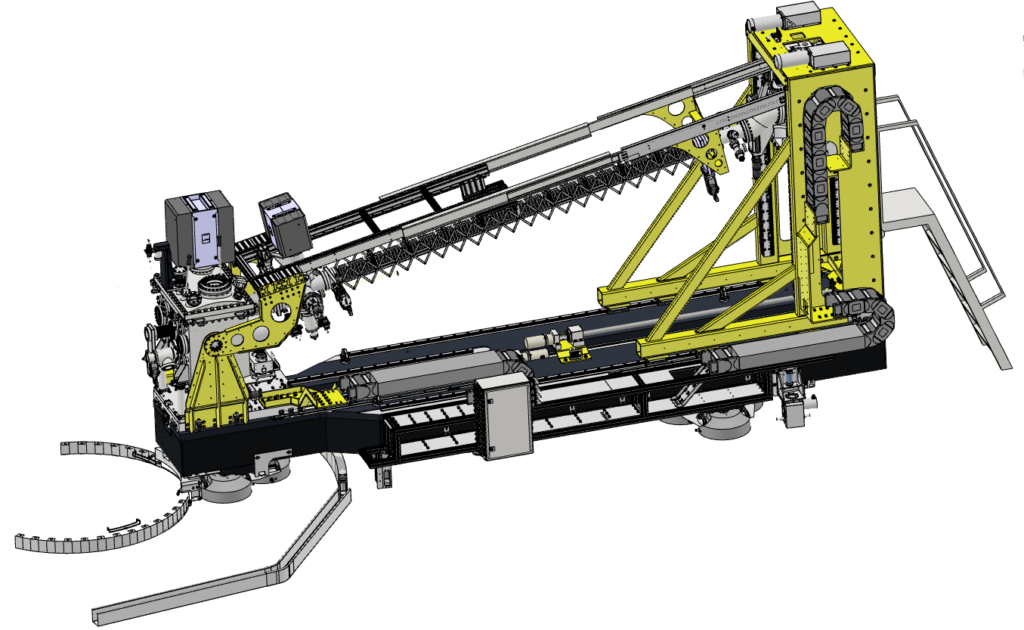

P495 - Outer dimensions - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

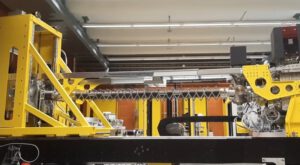

P495 – FURKA RIXS Spectrometer ATHOS SwissFEL PSI

Application

Resonant inelastic X-ray scattering (RIXS) spectrometer

Year of delivery

2022

Installation site

ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

The design of the FURKA RIXS for the SwissFEL is similar to the hRIXS for the European XFEL (see P470) and benefited from the prior development of the hRIXS. The challenge here was to realize the required variable incidence angle on the detector, which is rigidly connected to the detector chamber, without blocking part of the beam and the detector.



For detailed information on the RIXS spherical grating monochromator and its performance, see P495-SGM.

Design Features

  • Spectral range: 200 – 2000 eV.
  • Variable included angle monochromator design.

  • Variable detector incidence angles for all grating included angles.

  • Variable entrance and exit arm lengths.

Performance Features

  • Very high pitch angle resolution over the whole range.
  • Low parasitic motions for all resolution relevant axes.
  • Very high vibrational and drift stability.

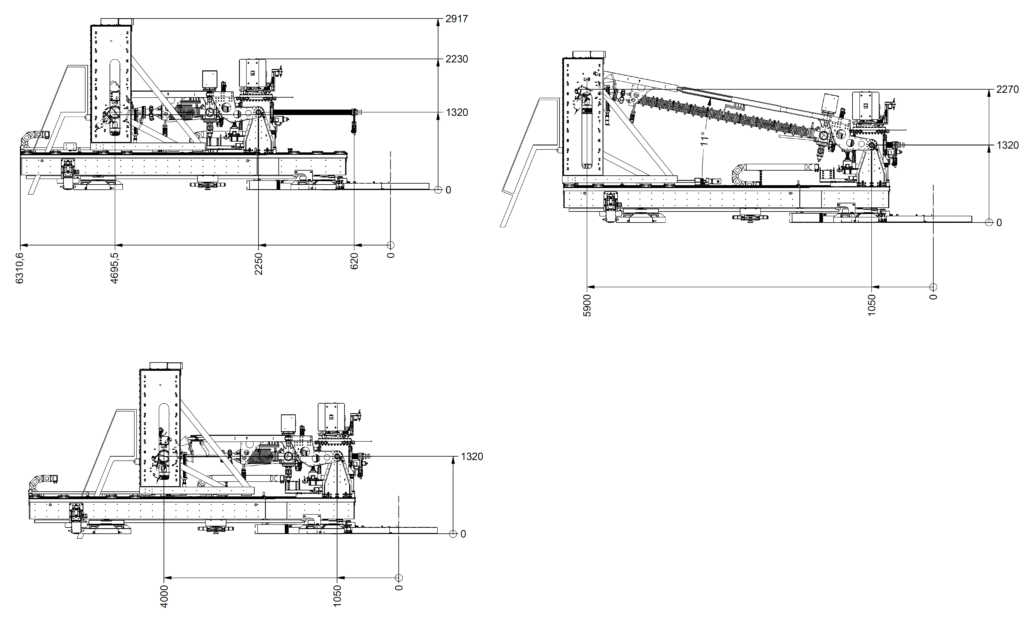

Outer Dimensions

P495 - Outer dimensions - Spherical grating monochromator (SGM) for soft X-ray radiation at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

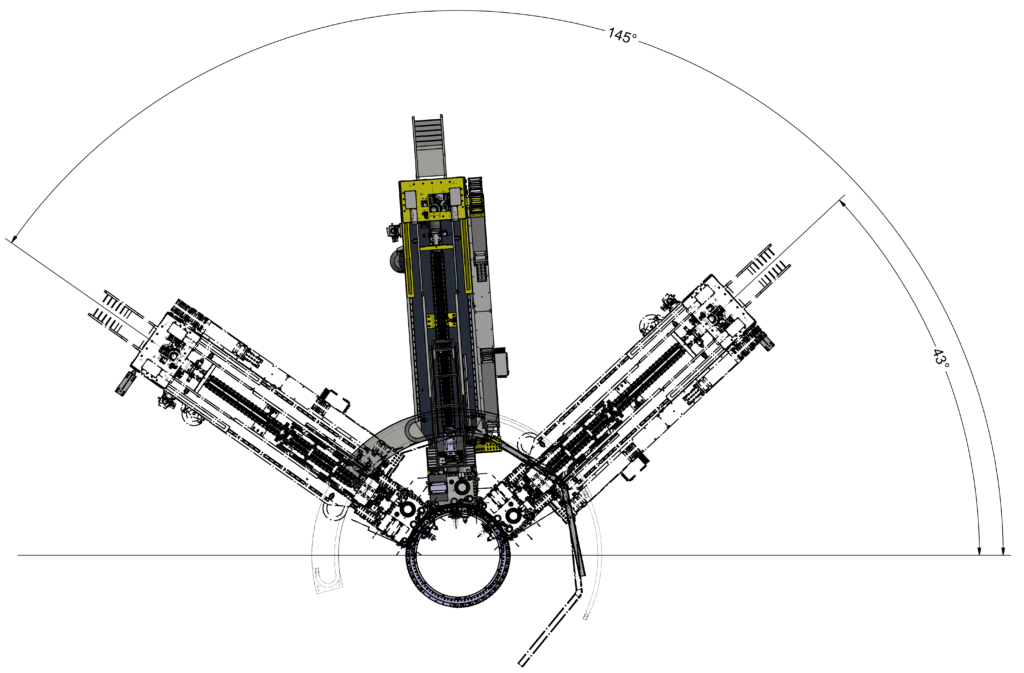

P495 - Rotation range - Spherical grating monochromator (SGM) for soft X-ray radiation at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

Technical specifications and performance values

General

Spectrometer rotation

Range

43° to 145°

Resolution (design value)

2.9 x 10-4 °/motor step
3.31 x 10-6 °/encoder count

Grating chamber

Longitudinal translation

Range

1049 mm to 2267.9 mm

Resolution (design value)

0.0468 µm /motor fine step
(1/32, recommended)
0.05 µm /encoder count

Resolution (measured value)

10 µm

Absolute accuracy (under vacuum)

19 µm

Long-term stability (3h)

0.03 µm

Detector chamber

Pitch rotation

Range

18° to 61°

Resolution (design value)

0.0125 µrad /motor fine step
(1/128, recommended)
0.33 µrad /encoder count

Absolute accuracy

0.03°

Long-term stability (> 4h)

0.11 µrad

Longitudinal translation

Range

3999.5 mm to 5900.8 mm

Resolution (design value)

0.0468 µm /motor fine step
(1/32, recommended)
0.05 µm /encoder count

Resolution (measured value)

100 mm

Absolute accuracy (under vacuum)

38 µm

Long-term stability (3h)

0.057 µm

Vertical translation

Range

-2 mm to 960 mm

Resolution (design value)

0.078 µm /motor fine step
(1/64, recommended)
0.05 µm /encoder count

Resolution (measured value)

100 mm

Absolute accuracy

14 µm (in air)
23 µm (under vacuum)

Long-term stability (3 h)

< 0.07 µm

Performance Test Results

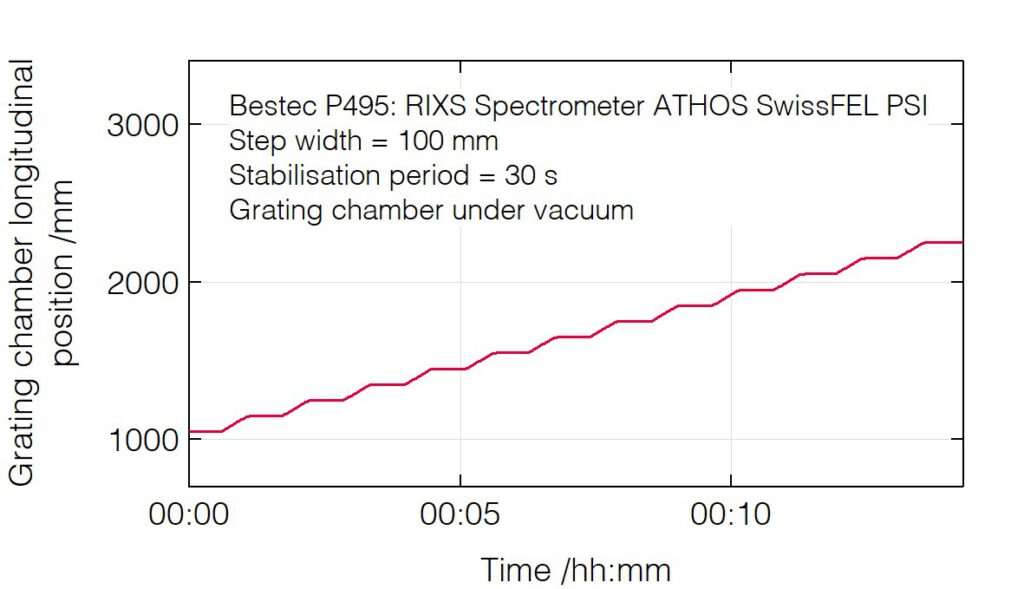

Grating chamber longitudinal position
(laser tracker measurement)
P495 - Grating chamber longitudinal position vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

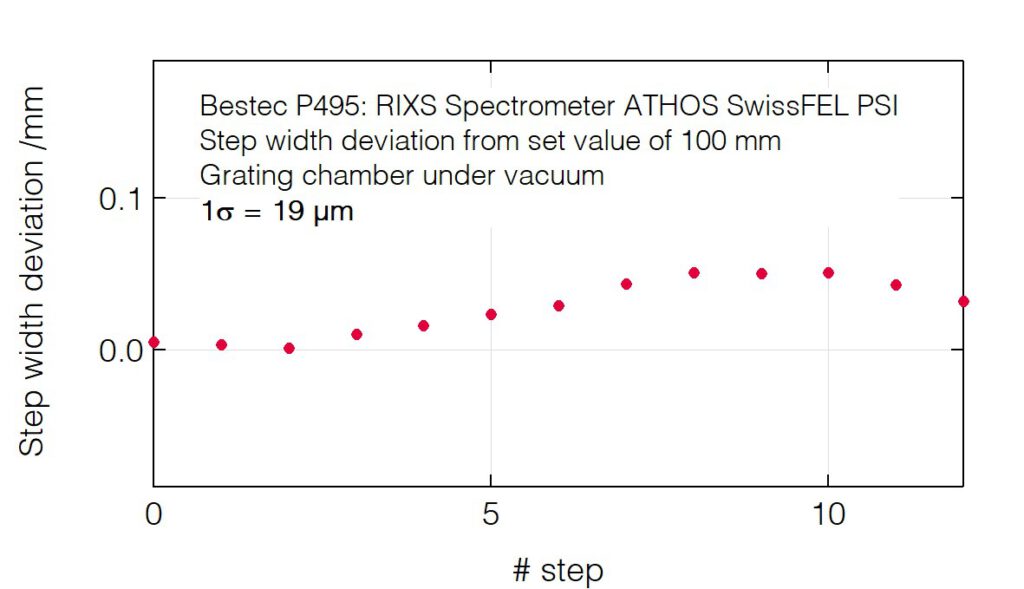

Grating chamber absolute longitudinal
position accuracy
P495 - Step width deviation (longitudinal) vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

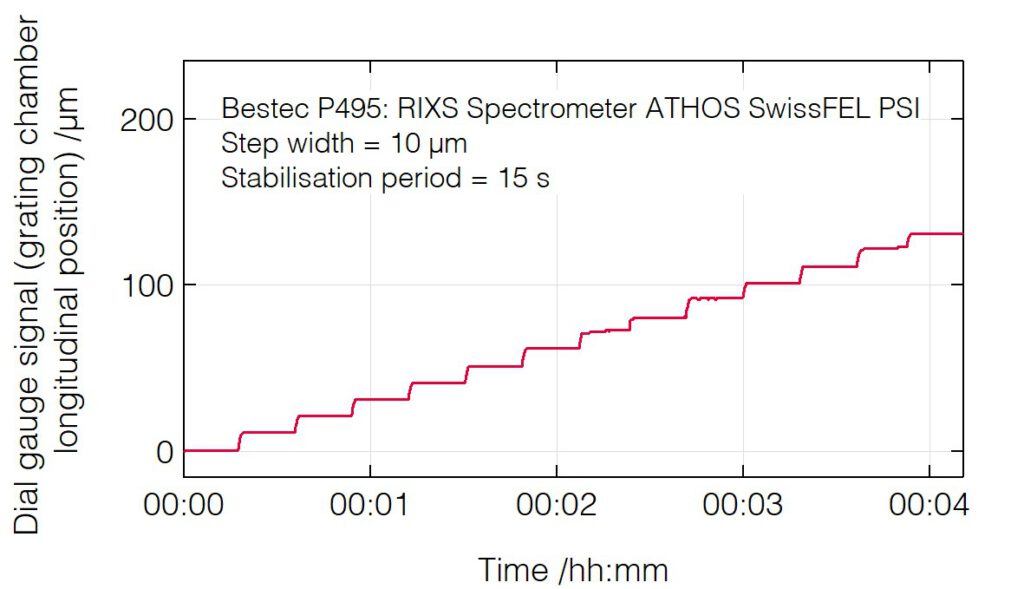

Grating chamber longitudinal positioning resolution
(dial gauge measurement)
P495 - Grating chamber longitudinal position - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

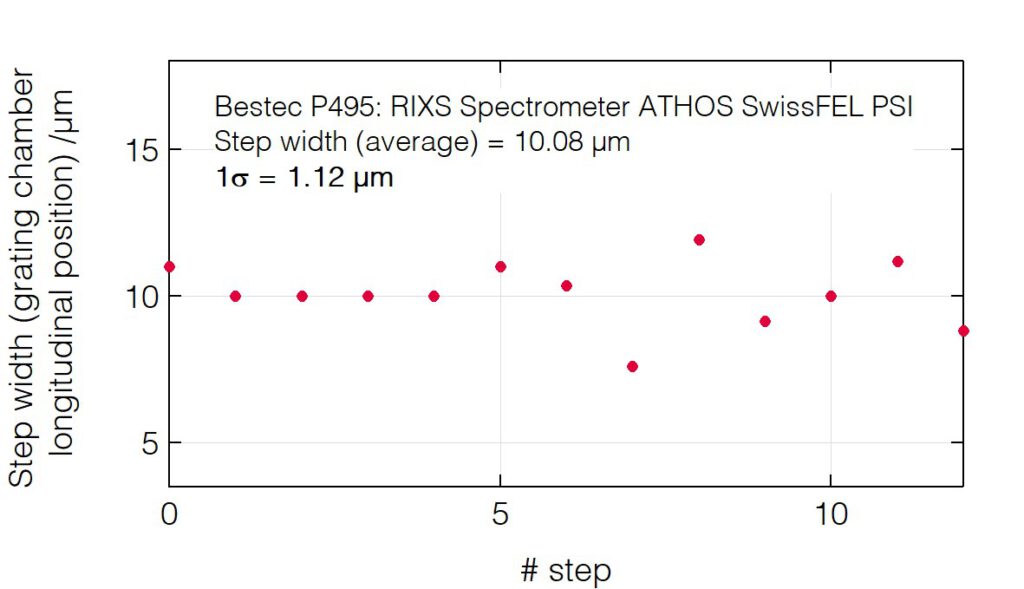

Grating chamber longitudinal translation
step width
P495 - Step width grating chamber longitudinal position - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

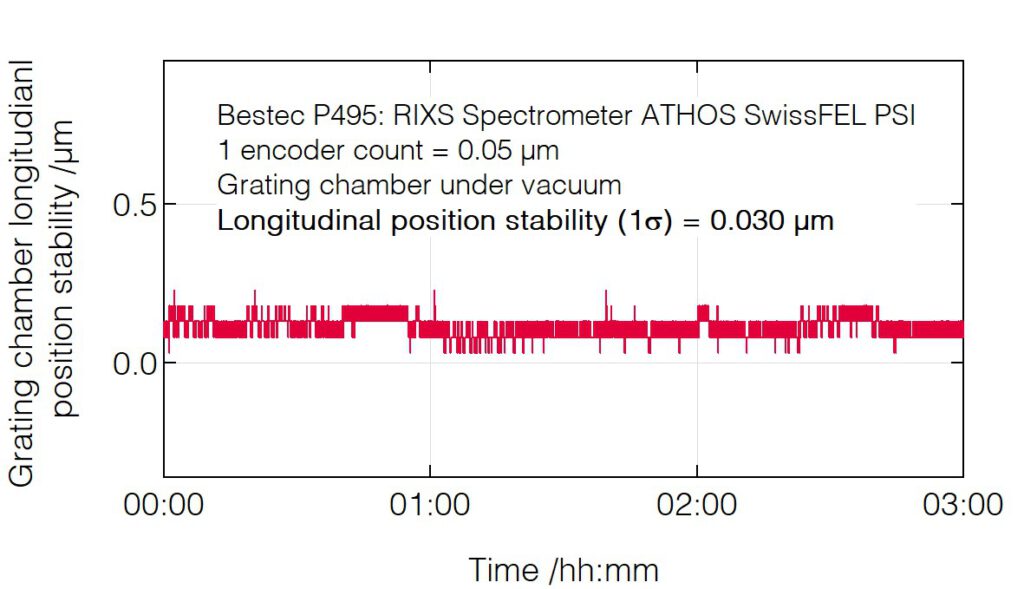

Grating chamber longitudinal position
long-term stability
P495 - Grating chamber longitudinal position stability vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

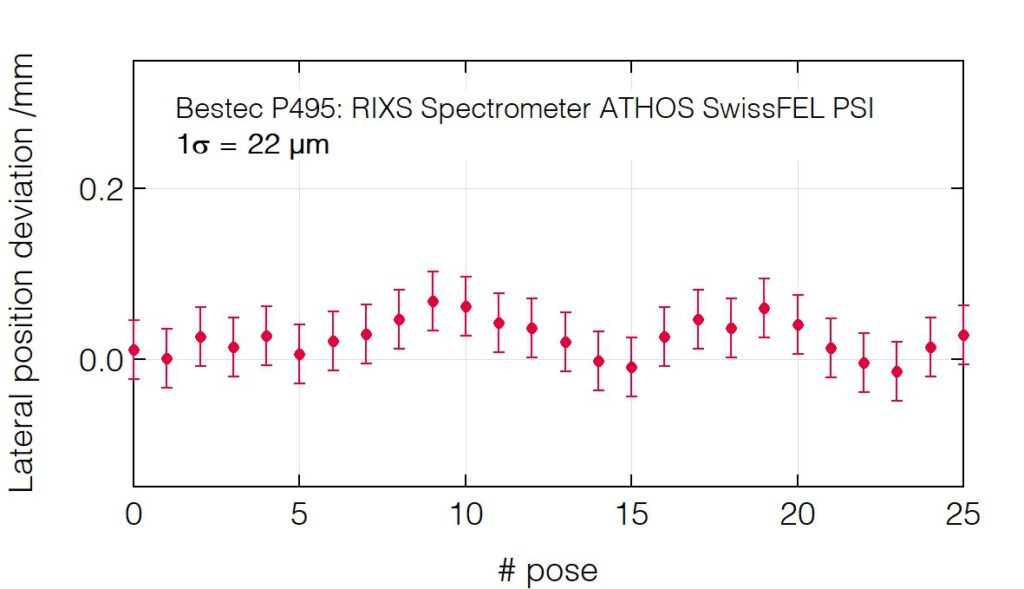

Detector absolute lateral position accuracy
(laser tracker measurement)
P495 - Detector position accuracy lateral - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

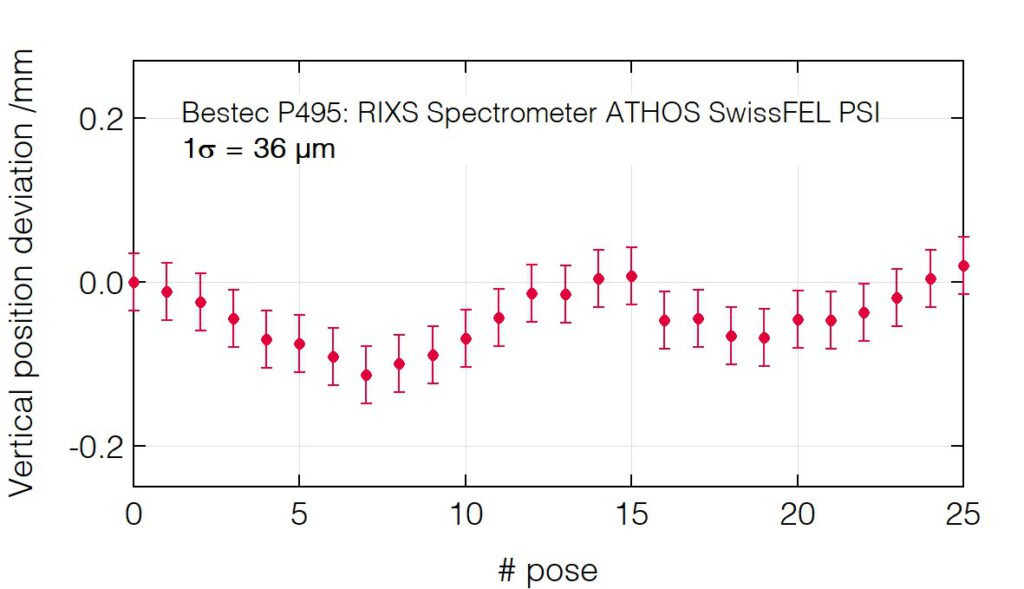

Detector absolute vertical position accuracy
(laser tracker measurement)
P495 - Detector position accuracy vertical - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

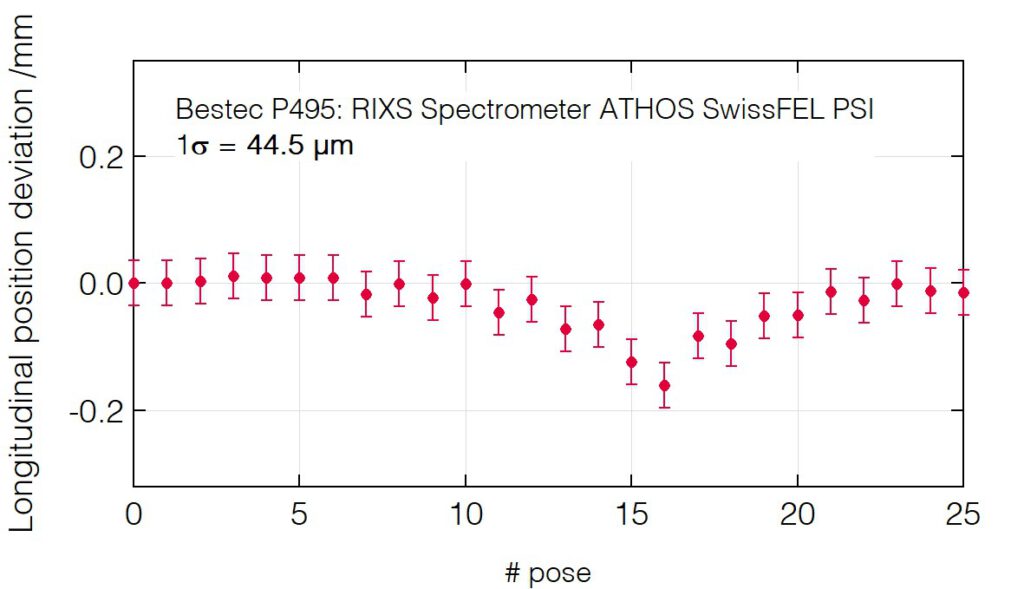

Detector absolute longitudinal position accuracy
(laser tracker measurement)
P495 - Detector position accuracy longitudinal - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

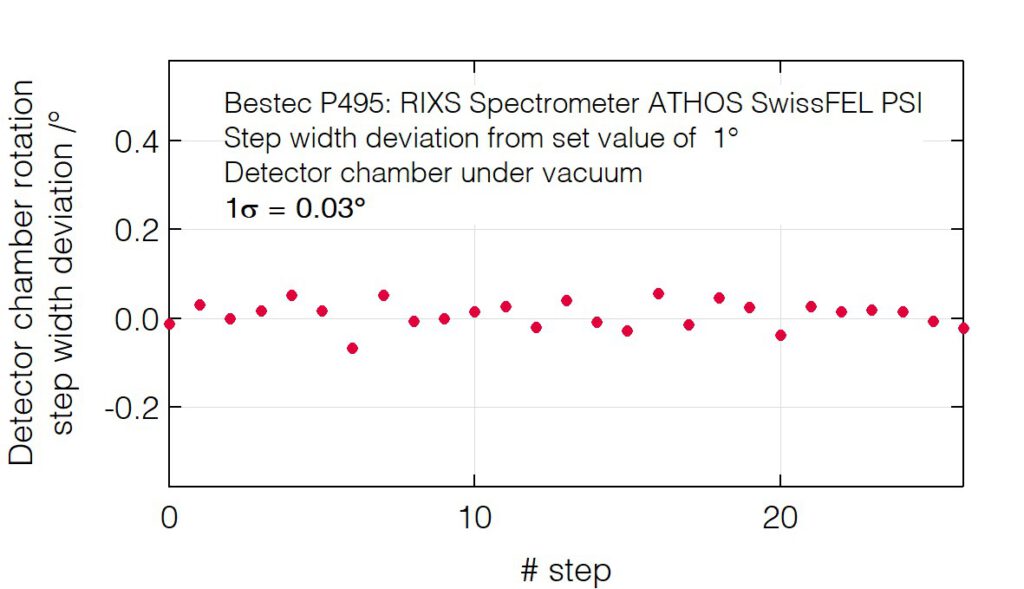

Detector absolute pitch rotation accuracy
(laser tracker measurement)
P495 - Step width deviation (detector chamber rotation) vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

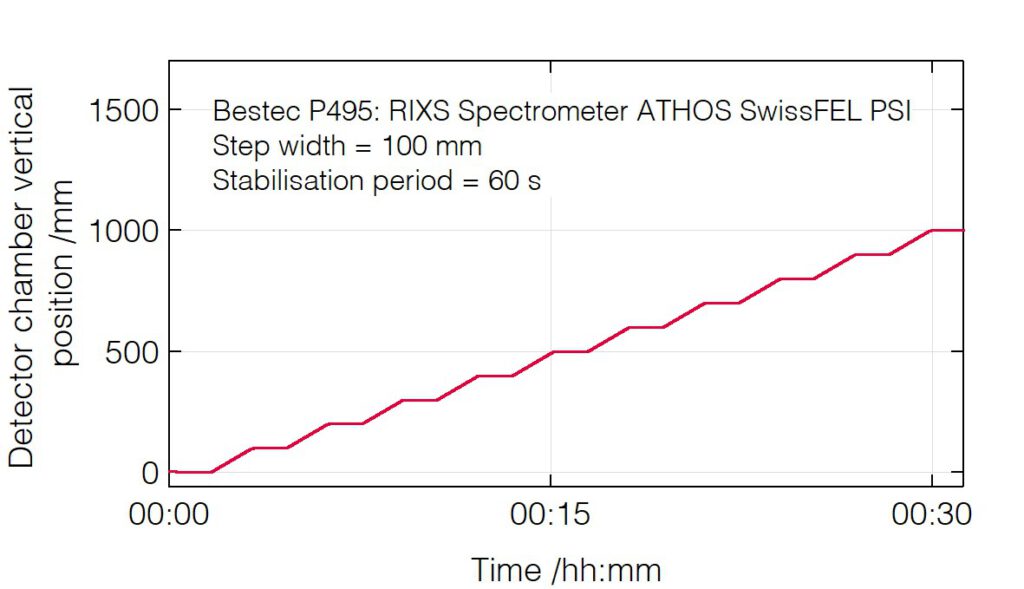

Detector chamber vertical position
(laser tracker measurement)
P495 - Detector chamber vertical position vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

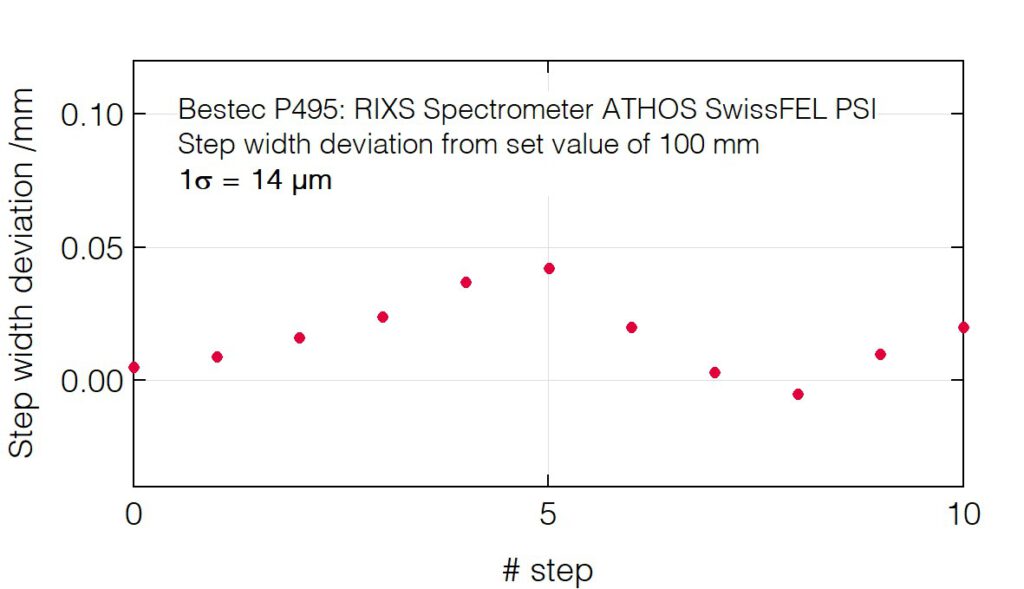

Detector chamber absolute vertical
position accuracy
P495 - Step width deviation (vertical) - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

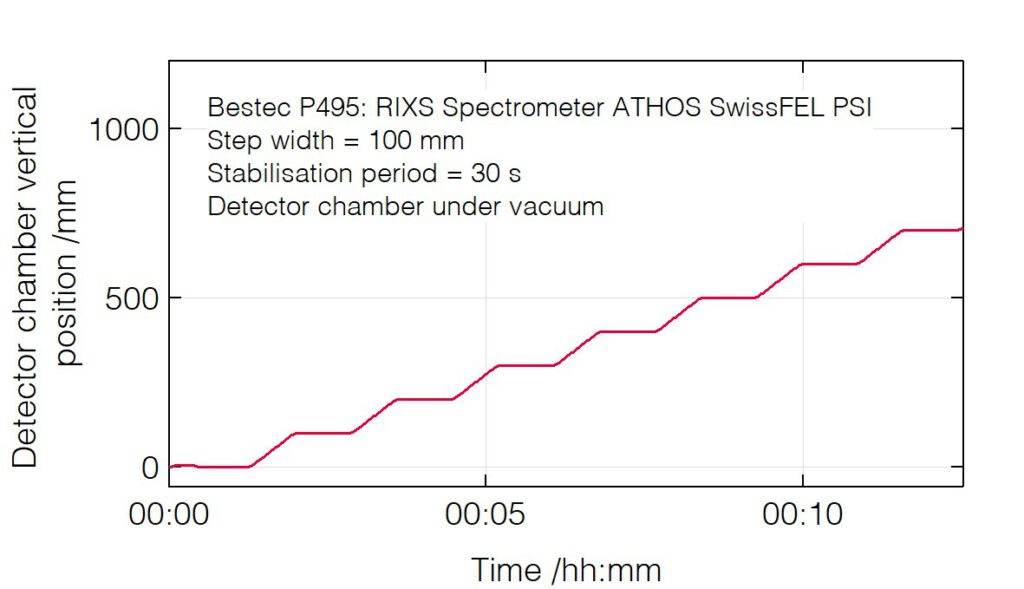

Detector chamber vertical position
(laser tracker measurement, under vacuum)
P495 - Detector chamber vertical position vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

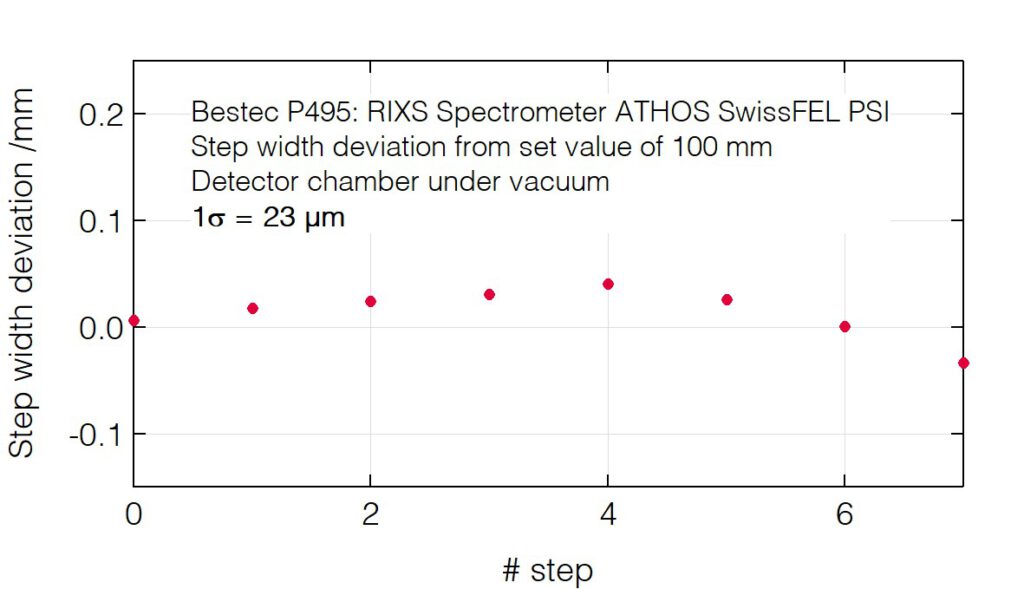

Detector chamber absolute vertical
position accuracy (chamber under vacuum)
P495 - Step width deviation (vertical) vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

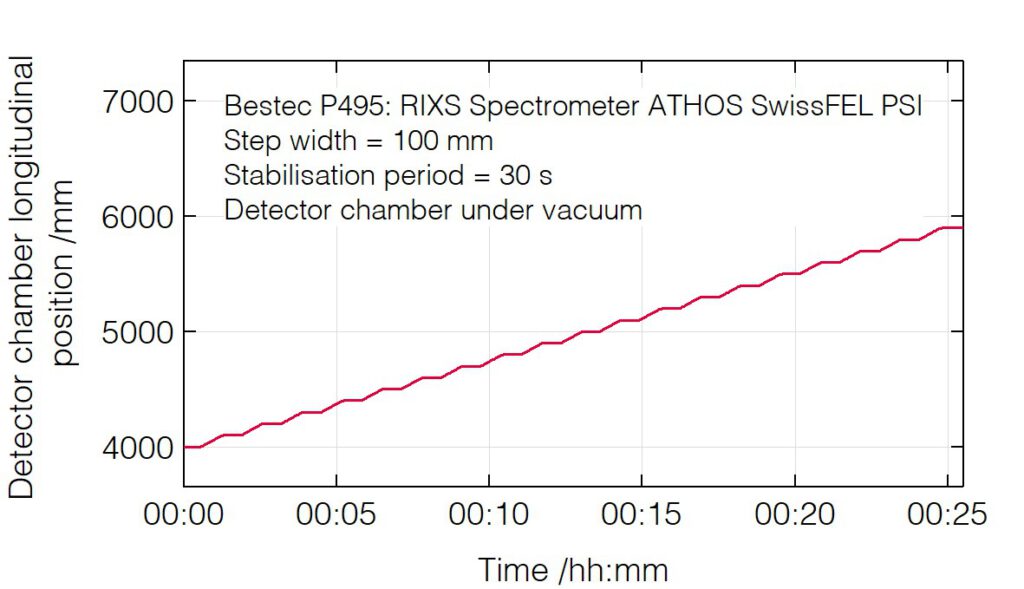

Detector chamber longitudinal position
(laser tracker measurement, under vacuum)
P495 - Detector chamber longitudinal position vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

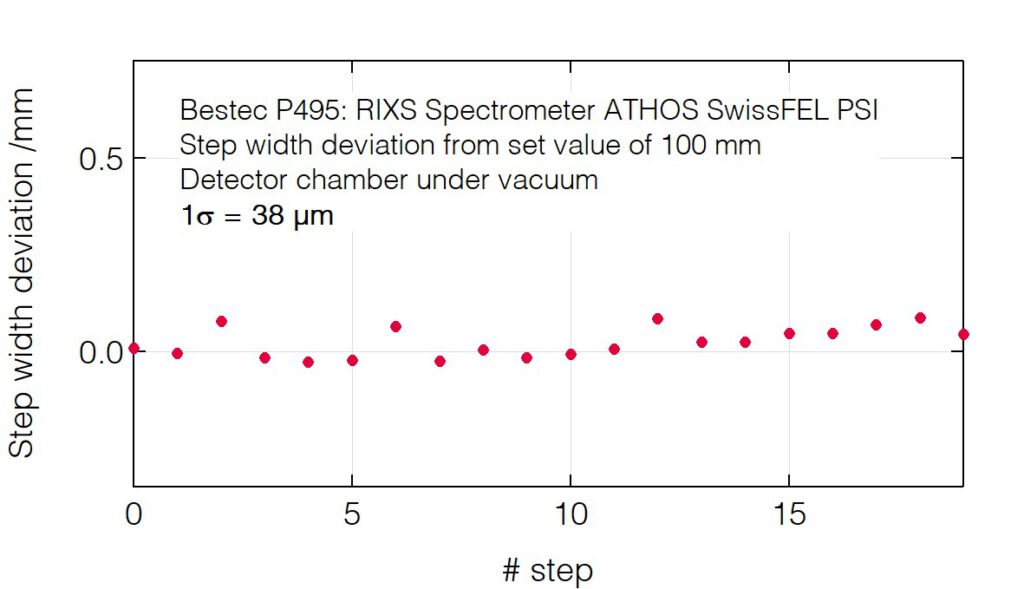

Detector chamber absolute longitudinal
position accuracy (chamber under vacuum)
P495 - Step width deviation (longitudinal) vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

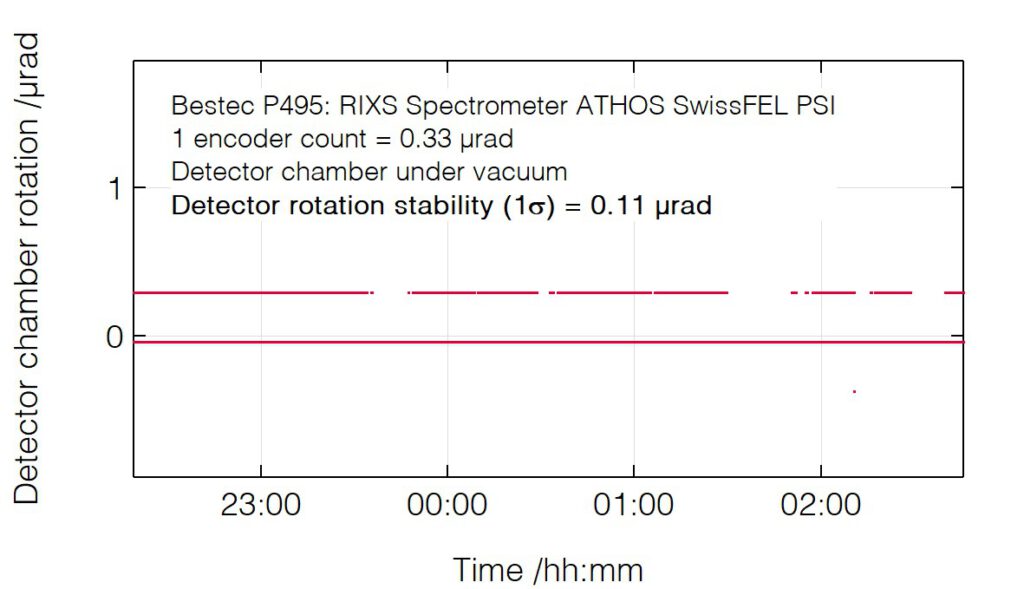

Detector chamber pitch rotation long-term stability
(chamber under vacuum )
P495 - Detector chamber rotation stability vacuum 2 - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

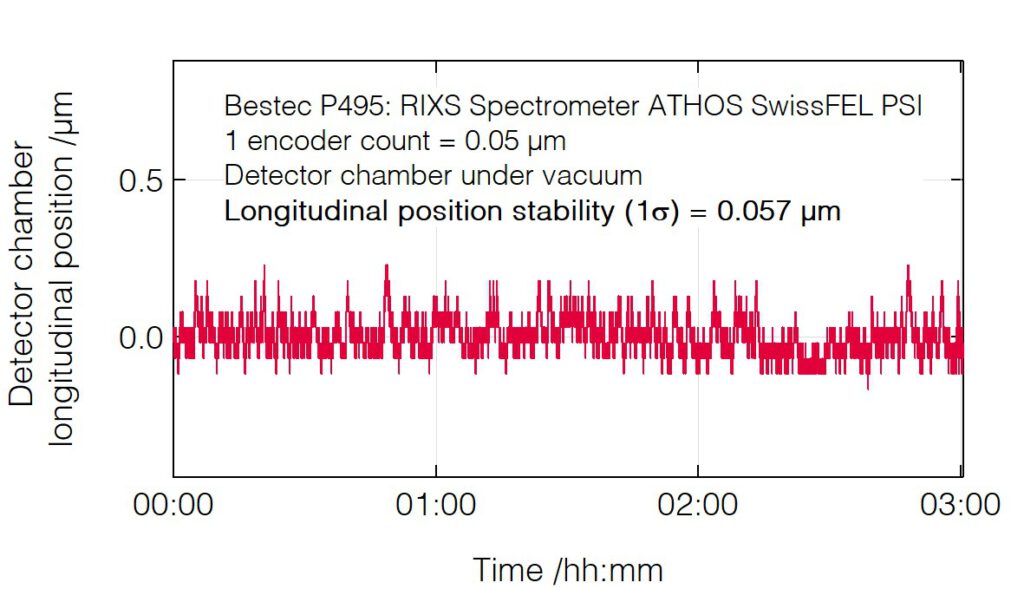

Detector chamber longitudinal position long-term stability (chamber under vacuum)
P495 - Detector chamber longitudinal position stability vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland

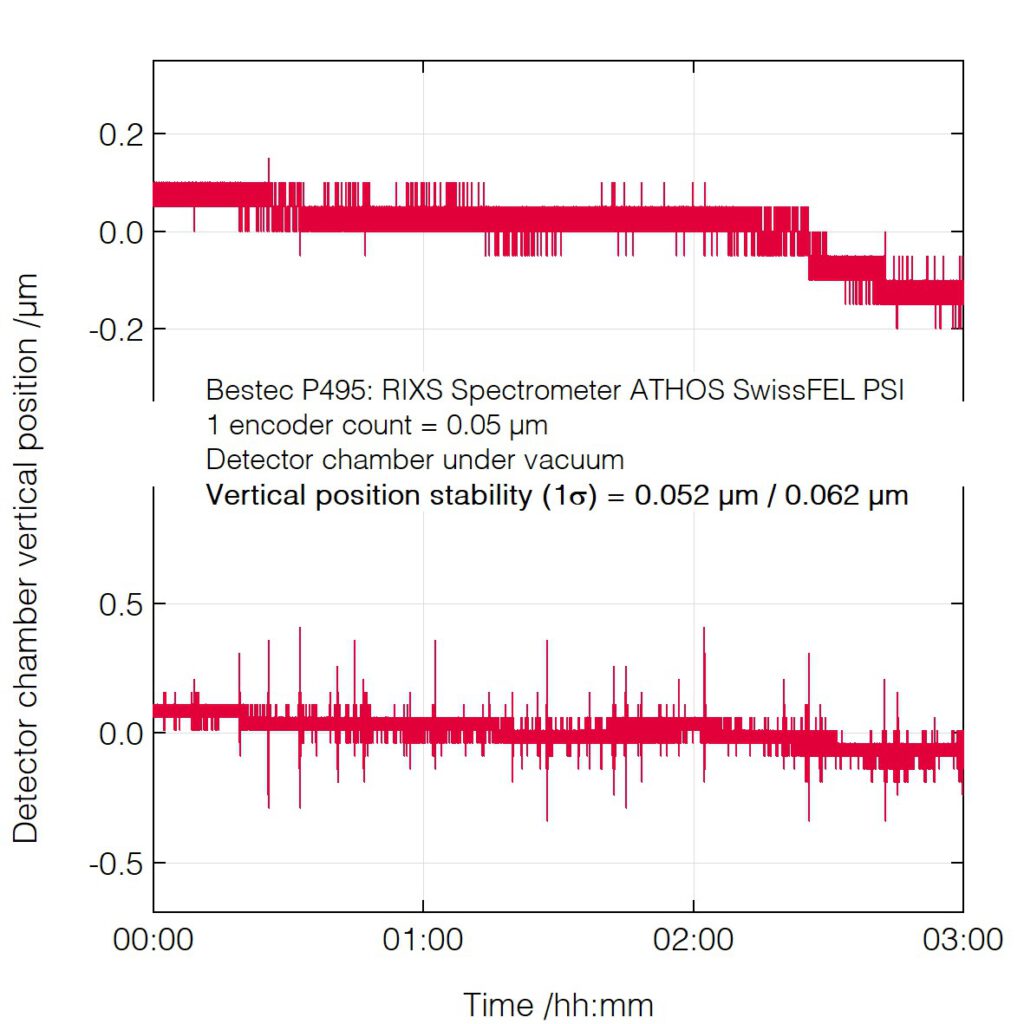

Detector chamber vertical position long-term stability (chamber under vacuum)
P495 - Detector chamber vertical position stability vacuum - Resonant inelastic X-ray scattering (RIXS) spectrometer at ATHOS beamline at Swiss FEL, Paul Scherrer Institut, Switzerland
