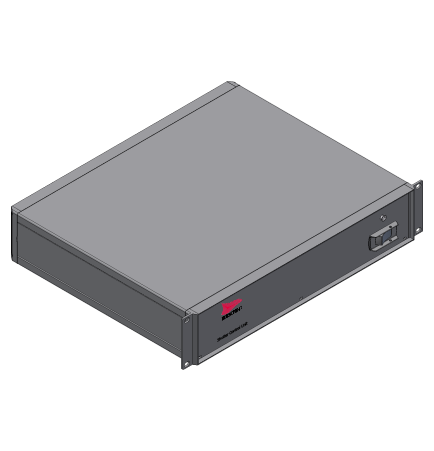

Motion control unit SCU6 (0000-08309)
Motor type
Brushless DC motor with integrated gear box & incremental encoder (typically used for shutters)
Motor connections
6x Sub D 9 socket
Motor state inputs
For each motor axis (at corresponding motor connection)
- 1x Reference switch or limit switch
- 1x Encoder signal (incremental encoder)
Motor load
max. 3A at each motor channel
(Controller limit for synchron motion: max. 10A all axes combined)
Power connection
IEC connection cable (CEE 7/7 Plug to C13, 2m)
